brushless DC mini water pump for water dispenser/ coffee machine/tea pot
| Payment Terms: | T/T,L/C,WU;Money Gram |
| Place of Origin: | Guangdong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Long life:over20000 hour
Very low noise;within 35db
Working time:can work a whole day continuously
Safe:low voltage,no spark
Waterproof
Foodgrade
| 25-02 brushless DC mini water pump | ||||||
| Feature: | ||||||
| 1. Life: Expected life span is about 20000 hours. | ||||||
| 2. Low noise: ≤35dB, far from 1meter distance. | ||||||
| 3. Duty work: The pump can sustain heavy duty work for a whole day. Continuous operation. | ||||||
| 4. Working conditions: Applying to indoor and outdoor under temperature 40degC. | ||||||
| 5.Working temperature: Within 100 degC. | ||||||
| 6. It is waterproof and can be submersible. | ||||||

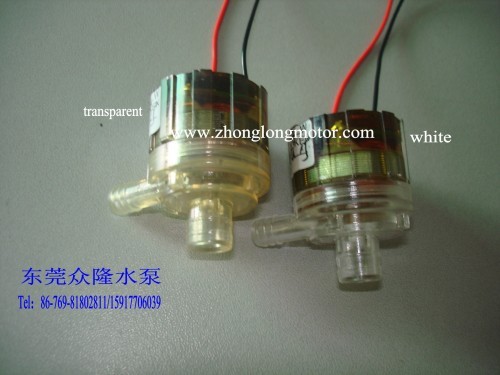

| 7. We can offer this item with trasparent color, white color and black color, the transparent color item | ||||||
| and white color item are food grade. The item with black color can offer both food grade and non food | ||||||
| grade items. Please tell us which item you need. | ||||||
| 8. This pump is our newest design, it is made of high temperature resistant material, it can work a whole | ||||||
| day continuously in boiled water without any damage.This pump is specially designed for hot water | ||||||
| system, coffee maker, tea pot, small fountain, aquarium, flowers and plants watering, ect. | ||||||
| We can offer over voltage protection, over current protection, temeprature control, ect. All functions are | ||||||
| custormized according to your request. | ||||||
| 9. THE TECHNICAL SPECIFICATIONS BELOW IS ONLY FOR YOUR REFERENCE. IT CAN | ||||||
| BE CUSTORMIZED ACCORDING TO YOUR TECHINCAL REQUIREMENTS. | ||||||
| Power supply: | ||||||
| It can be powered directly by Solar panel; DC electric source; battery. |
| Application: | ||||||
| 1. Coffee maker(Food grade item) | ||||||
| 2. Tea pot (Food grade item) | ||||||
| 3. Electric air pot | ||||||
| 4. Water ciculation system | ||||||
| 5. Fountain, aquarium | ||||||
| 6. Medical divices | ||||||
| 7. Water dispenser(Food grade item) | ||||||
| 8. Fruit juice mixer(Food grade item ) | ||||||
| Specification: | ||||||
| Model | Working voltage | Working current | Static lift | Static flowrate | Temp | Remarks |
| 25-02 | 4.5VDC | 350mA | 0.7 meter | 0.8 L/min | ≤100degC | |
| 6 VDC | 300mA | 1 meter | 1 L/min | ≤100degC | ||
| 9 VDC | 300mA | 1.5 meter | 1.5 L/min | ≤100degC | ||
| 12 VDC | 250mA | 1.5 meter | 1.5 L/min | ≤100degC | ||
| The tolerance of technical parameters above is ±10% | ||||||
| Remarks:The technical parameters above are only a few for your reference, we can offer a lot of different speficiations accroding to your request, for more detailes, please feel free to contact us. | ||||||
| Structure dimensions | ||||||
| Model | Dimension(mm) | Inlet OD(mm) | Outlet OD(mm) | Remarks | ||
| 25-02 | 34.8*26.9*36 | 10.2 | 7 | Outelt and inlet have anti-slip strips | ||
